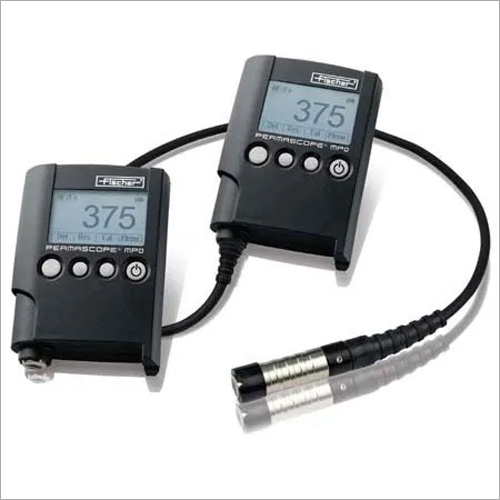

Thickness Tester

Product Description

Features:

Typical fields of application of Thickness Tester MP0R FP:

Gauge Types:

Evaluation

Statistics:Display of standard deviation, mean value, MAX, MIN, and number of capacities per block

PC software: PC software FISCHER DataCenter with the given below functionality:

included in Transferring and archiving measurement data

the scope of supply: graphical and statistical evaluations, easy creation as well as printing of inspection reports.

Measurement Functions

Block size:Adjustable between 20 and 2 single readings per block

Tolerance limits:Adjustable as per the measuring mode

Offset value:In the standard mode. The freely adjustable offset assessment is deducted automatically from the measured value to obtain the thickness of the top coating in case of knowing the value of interim coating.

Units of measurement:Selectable m or mils

Continuous display mode:Measurement in "continuous display mode" for constant sampling of the surfaces like in the production of tanks and containers.

Normalization:Adaptation to the substrate materials and the shape of the specimens.

Calibration:Factory calibration

Thickness Testers is factory calibrated at numerous reference points with the utmost care to make sure the maximum possible degree of trueness.

Corrective calibration (Adjustment)

Adaptation to the substrate material as well as the shape of the specimen and to a thickness assessment using a calibration foil.

Simple Calibration

Adaption to the coating along with substrate material in a single step using a coated reference part along with a coating thickness more than 200 m (7.87 inches). Nevertheless, this calibration offers only a lesser accuracy as specified in the sections Trueness and Repeatability Precision.

General Features

Measuring method:Magnetic induction method (ISO 2178, ASTM D7091, Measurement of

non-magnetic coatings on magnetic substrates)

Probe:Probe tip radius: 2 mm (78 mils); Probe tip material: Hard metal

Data memory:Max. 10,000 individual readings; the contents of the memory is retained even without batteries

Measuring frequency:More than 70 measurements per minute

Measurement acquisition:Automatic placement of the probe; sign of the measurement with a beep visually with a green lit LED

Display: Graphic display, besides the measurement reading the mean value as well as the standard deviation or the number measurement reading can also be shown. LCD display on the top side of the device, e.g., for reading the dimension value for measurement overhead

Display limit value violation: Acoustically through 2 short beeps with a red lit LED

Languages: Different display languages from German, English to other European and Asian languages

USB port:2.0 compatible, mini type B socket, for connecting a PC

Data transfer:Single readings, mean values, group separator

Admissible ambient 0 .... +40^oC (+32 ... +104^oF)

temperature range during operation:

Weight (incl. batteries):MP0R: 137 g (4.8 oz) ; MP0R-FP: 184 g (6.5 oz)

Power supply:2 Batteries, LR6, AA, 1.5 V
