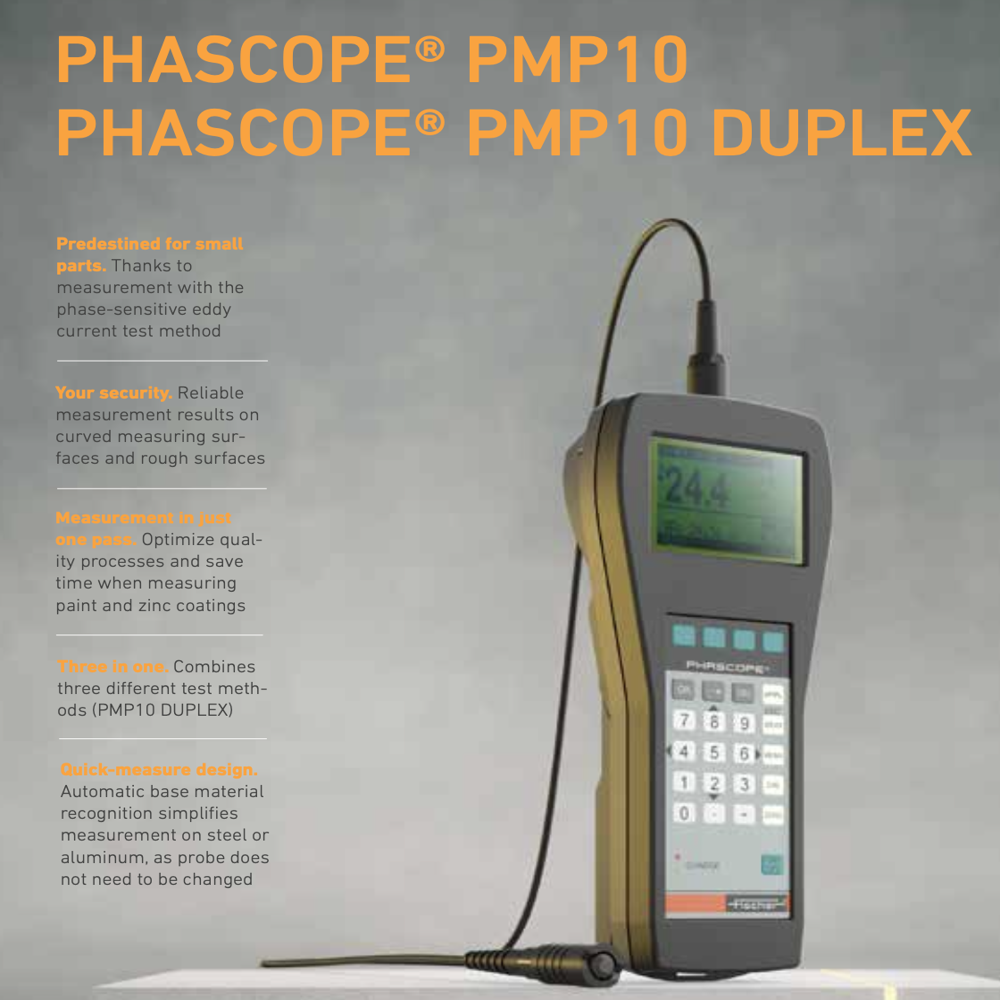

PHASCOPE PMP10 DFT METER

Get a Price/Quote

Product Details:

Material Rugged plastic housing
Condition New
Technology Magnetic Induction & Eddy Current
Portable Yes
Operating Temperature 0C to 40C
Humidity % Max 95%, non-condensing
Sensors Specification Integrated probe for Fe/NFe substrates
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PHASCOPE PMP10 DFT METER Price And Quantity

Minimum Order Quantity 1 Number

PHASCOPE PMP10 DFT METER Product Specifications

Power Consumption Approx. 2 VA
Material Rugged plastic housing
Humidity % Max 95%, non-condensing
Portable Yes
Condition New
Power Source Rechargeable Battery or Mains Adapter
Technology Magnetic Induction & Eddy Current
Working Voltage 100-240 V AC, 50/60 Hz (mains adapter)
Usage Coating Thickness Measurement
Operating Temperature 0C to 40C
Speed Range Up to 70 measurements/min
Weight Approx. 370 g (including battery)
Sensors Specification Integrated probe for Fe/NFe substrates
Dimension (L*W*H) 153 x 89 x 32 mm
Indicator Specification Digital LCD Display

Resolution 0.1 m (0-99.9 m); 1 m (100-999 m); 0.01 mm (1-2 mm)
Included Accessories Probe, calibration standards, transport case, USB cable, and power supply
Compliance Measuring standards according to ISO 2178, ISO 2360, ASTM B244, and ASTM D7091
Measuring Range (NFe) 0-2,000 m (0-78.7 mils)
Minimum Curvature Radius (Convex) 1.5 mm (Fe), 3 mm (NFe)
Minimum Substrate Thickness (NFe) 0.05 mm
Measurement Units Selectable: m/mils
Data Storage Up to 20,000 readings
Calibration Factory calibration, 1-point, 2-point, and foil calibration
Minimum Substrate Thickness (Fe) 0.2 mm
Measuring Range (Fe) 0-2,000 m (0-78.7 mils)
Interfaces USB
Display High-contrast, backlit graphic display

PHASCOPE PMP10 DFT METER Trade Information

Delivery Time 7 Days

Product Description

Unlock precise coating analysis with the PHASCOPE PMP10 DFT Meter-highly recommended for its commanding accuracy and lustrous, high-contrast display. This portable device excels with selectable measurement units, finest resolution, and data storage of up to 20,000 readings. Engineered for all Fe/NFe substrates, it offers factory and custom calibration, rapid measurement speed, and robust compliance to ISO and ASTM standards. Boasting competitive pricing, a rugged plastic body, and convenient USB connectivity, it is the definitive choice for professionals who demand reliability and excellence.

Specialized & Versatile Usage Applications

Designed for both specific and general coating thickness measurement tasks, the PHASCOPE PMP10 DFT Meter brings high performance to a range of applications. It is ideal for quality control, manufacturing, automotive inspections, and laboratory analysis. With integrated probes for both ferrous and non-ferrous substrates, it suits users from paint inspectors to industrial manufacturers, ensuring versatile utilization wherever precise thickness analysis is required.

Global Trade, Sample Policy & Supply Details

The PHASCOPE PMP10 DFT Meter is competitively priced for the global market, with rapid fulfillment on purchase orders and shipped goods. Exported to international buyers, it garners sales across industrial and scientific sectors. Sample policies are set for bulk orders, and supply ability is assured through streamlined distribution. Take advantage of wholesale rates and prioritized sale pricing for large-volume shipments to unlock consistent product availability.

FAQ's of PHASCOPE PMP10 DFT METER:

Q: How does the PHASCOPE PMP10 DFT Meter ensure accurate coating thickness measurements?

A: The PHASCOPE PMP10 uses both magnetic induction and eddy current technology, along with selectable resolution and integrated probes, to deliver highly accurate and reliable thickness readings for ferrous and non-ferrous substrates.

Q: What calibration methods are supported by the PHASCOPE PMP10 DFT Meter?

A: This device supports factory calibration, as well as 1-point, 2-point, and foil calibration, allowing users to maintain measurement precision tailored to their specific requirements.

Q: When is it advisable to utilize this meter in industrial environments?

A: You should use the PHASCOPE PMP10 during coating application, post-processing inspection, and routine quality checks to ensure coatings meet industry standards and specifications.

Q: Where can the PHASCOPE PMP10 be applied for optimal results?

A: It performs exceptionally in laboratories, manufacturing floors, automotive workshops, and field inspection sites-anywhere accurate coating thickness measurement is essential.

Q: What are the key benefits of using this meter for exporters and distributors?

A: Exporters and distributors benefit from its competitive sale price, ease of operation, large data storage, and robust compliance, making it an optimal choice for global supply chains.

Q: How is the device powered and what accessories are included in the shipment?

A: The meter is powered by a rechargeable battery or mains adapter. Each package contains the integrated probe, calibration standards, transport case, USB cable, and power supply, ensuring a complete operational kit upon delivery.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'XRF Coating Thickness Measurement Devices' category

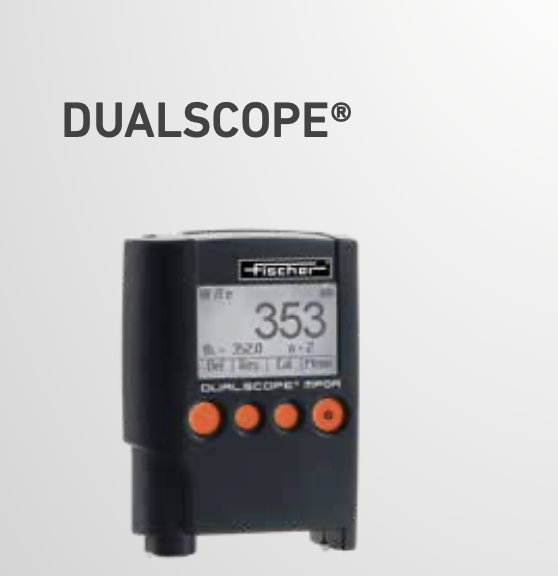

MP0 SERIES DUALSCOPE DFT METER Minimum Order Quantity : 1 Portable : Other, Yes, handheld Material : ABS plastic housing Condition : New Power Source : Other, Battery powered (2 x 1.5V AA batteries) Technology : Other, Magnetic induction and eddy current principle Humidity % : 0 to 85% RH (noncondensing) Power Consumption : Low power consumption Operating Temperature : 0C to 50C Working Voltage : 3.0V DC (from 2 x AA batteries) Usage : Coating thickness measurement on ferrous and nonferrous metals Dimension (L*W*H) : 109 x 50 x 23 mm (approx) Indicator Specification : Digital LCD display with high contrast Weight : Approx. 150 g (incl. batteries) Sensors Specification : Integrated Fe/NFe dual sensor system Light Source : Other, No external light source required Speed Range : Measurement: < 1 sec per reading

Send Inquiry

DUALSCOPE H FMP150 DFT METER Minimum Order Quantity : 1 Portable : Other, Yes, handheld design Material : Rugged plastic housing Condition : New Power Source : Other, Rechargeable lithiumion battery & external power adapter Technology : Other, Magnetic induction and eddy current Humidity % : Max 95% RH, noncondensing Power Consumption : Approx. 2.5 W Operating Temperature : 0C to 40C Working Voltage : 100240 V AC, 50/60 Hz Usage : Nondestructive coating thickness measurement Dimension (L*W*H) : 180 x 85 x 45 mm Indicator Specification : Highcontrast LCD display with backlight Weight : Approx. 500 g (without probe) Sensors Specification : Compatible with interchangeable F and N probes for ferrous and nonferrous metals Speed Range : Up to 70 measurements per minute, depending on probe

Send Inquiry

DUALSCOPE FMP100 DFT METER Minimum Order Quantity : 1 Portable : Yes Material : ABS Plastic Housing Condition : New Power Source : Other, External power supply (100240 V AC, 50/60 Hz), and rechargeable battery Technology : Other, Magnetic Induction and Eddy Current (Dual Technology) Humidity % : Max. 95% (noncondensing) Power Consumption : Max. 20 VA Operating Temperature : 0C to +40C Working Voltage : 12 V DC Usage : Digital Coating Thickness Measurement Dimension (L*W*H) : 222 x 162 x 68 mm Indicator Specification : Highresolution, color graphic display with touchscreen operation Weight : 1.1 kg (approx.) Sensors Specification : Compatible with all Fischer probes for magnetic induction, eddy current and dual methods Speed Range : Fast measurement cycle, up to 70 readings per minute

Send Inquiry

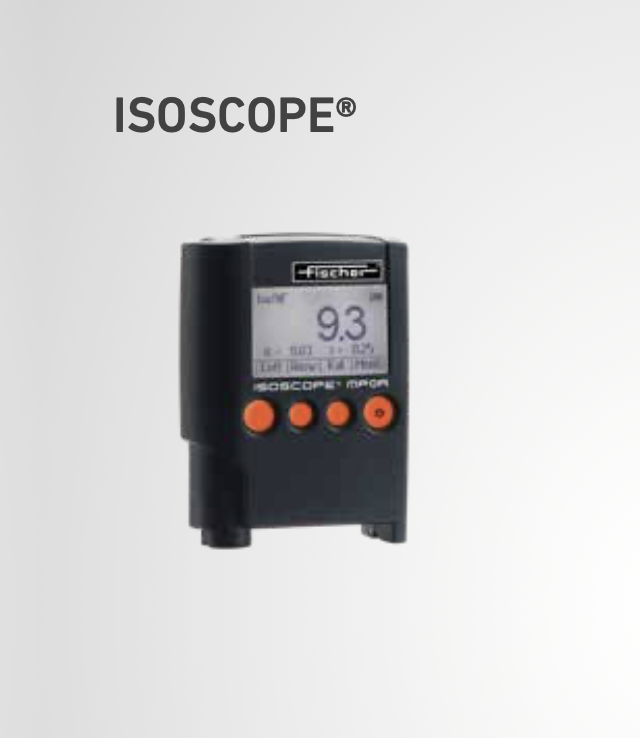

MP0 SERIES ISOSCOPE DFT METER Minimum Order Quantity : 1 Portable : Yes Material : ABS plastic body Condition : New Power Source : Other, 2 x 3V CR2032 lithium batteries Technology : Other, Magnetic induction and eddy current Humidity % : 85% RH (noncondensing) Power Consumption : Low power consumption Operating Temperature : 0 to +50C Working Voltage : 3 V Usage : Coating Thickness Measurement (Dry Film Thickness DFT) Dimension (L*W*H) : 109 x 44 x 20 mm Indicator Specification : LCD digital display Weight : Approx. 110 g (including battery) Sensors Specification : Integrated probe for ferrous and nonferrous substrates
