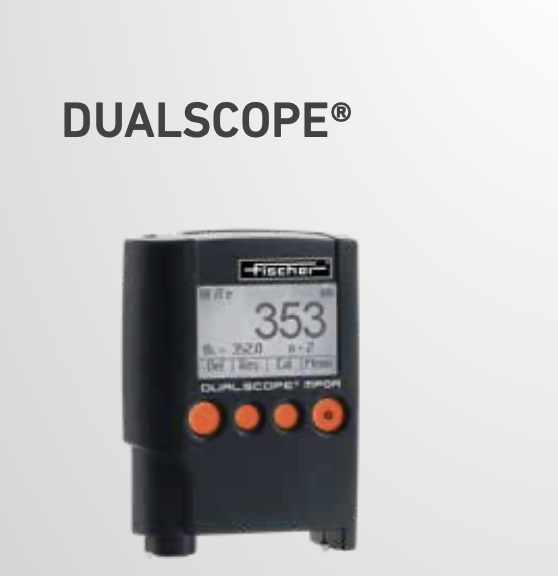

MP0 SERIES DUALSCOPE DFT METER

Get a Price/Quote

Product Details:

Material ABS plastic housing
Condition New
Technology Magnetic induction and eddy current principle
Portable Yes, handheld
Light Source No external light source required
Operating Temperature 0C to 50C
Humidity % 0 to 85% RH (non-condensing)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MP0 SERIES DUALSCOPE DFT METER Price And Quantity

Minimum Order Quantity 1 Number

MP0 SERIES DUALSCOPE DFT METER Product Specifications

Light Source No external light source required
Speed Range Measurement: < 1 sec per reading
Working Voltage 3.0V DC (from 2 x AA batteries)
Technology Magnetic induction and eddy current principle
Focus Contact-type probe, no focus adjustment
Weight Approx. 150 g (incl. batteries)
Dimension (L*W*H) 109 x 50 x 23 mm (approx)
Sensors Specification Integrated Fe/NFe dual sensor system
Indicator Specification Digital LCD display with high contrast
Usage Coating thickness measurement on ferrous and non-ferrous metals
Humidity % 0 to 85% RH (non-condensing)
Power Source Battery powered (2 x 1.5V AA batteries)
Material ABS plastic housing
Condition New
Power Consumption Low power consumption
Portable Yes, handheld
Operating Temperature 0C to 50C

Standards Compliance DIN, ISO, ASTM, BS standards
Resolution 0.1 m (< 100 m) / 1 m ( 100 m)
Measurement Range (NFe) 0 - 2000 m
Display Backlit LCD, numeric and icon
Calibration Single and two-point calibration, factory mode
Data Hold Yes
Accuracy (1 m + 1% of reading)
Auto Power Off Yes, after short period of inactivity
Minimum Curvature Radius (Convex) 1.5 mm
Minimum Sample Thickness (Substrate) 0.5 mm (Fe), 50 m (NFe)
Measurement Range (Fe) 0 - 2000 m

MP0 SERIES DUALSCOPE DFT METER Trade Information

Delivery Time 7 Days

Product Description

Unlock superlative measurement capabilities with the MP0 SERIES DUALSCOPE DFT METER, the celebrated device for coating thickness validation across ferrous and non-ferrous metals. Access high-precision readings-down to 0.1 m-using advanced magnetic induction and eddy current technology. Its valiant dual-sensor system ensures accuracy on every reading, while the backlit LCD display showcases data clearly. Auto power-off and robust calibration options streamline operations, and the ABS housing delivers lasting durability. Discover the ultimate bargain in professional coating inspection-unlock reliability and brilliance in every measurement.

Versatile Applications and Simple Methodology

The MP0 SERIES DUALSCOPE DFT METER is suitable for professionals involved in automotive, industrial, and fabrication sectors seeking precise coating thickness measurement. Application places include manufacturing plants, quality control labs, and field inspections. With its contact-type probe, simply position the meter on the metal surface for a quick, accurate reading. Its lightweight, portable design makes it effortless to use on-site or in factories, ensuring convenience and efficiency across various tasks.

Packaging, Delivery, and Certifications Information

Each MP0 SERIES DUALSCOPE DFT METER is securely packaged to guarantee safe Goods Transport through authorized Transport Services. Expect prompt delivery times upon confirmation of your Purchase Order, ensuring swift addition to your workflow. This product meets the highest quality benchmarks, with certifications in line with DIN, ISO, ASTM, and BS standards, assuring global standards compliance and dependable performance for professional applications.

FAQ's of MP0 SERIES DUALSCOPE DFT METER:

Q: How does the MP0 SERIES DUALSCOPE DFT METER operate for measuring coating thickness?

A: The meter uses a contact-type probe combined with magnetic induction and eddy current principles to deliver accurate thickness measurements on ferrous and non-ferrous metals.

Q: What are the main application areas for this DFT meter?

A: It is widely used in automotive workshops, manufacturing plants, metal fabrication sites, and quality control laboratories for precise coating thickness verification.

Q: When should I calibrate the MP0 SERIES DUALSCOPE DFT METER?

A: Calibration can be performed using either single or two-point methods, or factory settings as required-ideally before a new measurement series or when switching between metal types.

Q: What are the benefits of its dual sensor system?

A: The integrated Fe/NFe dual sensor system allows for swift switching and accurate readings on both ferrous and non-ferrous materials, increasing the versatility and reliability of the meter.

Q: Where can the device be used in terms of environmental conditions?

A: The MP0 SERIES DUALSCOPE DFT METER functions optimally in environments with humidity up to 85% RH (non-condensing) and temperatures ranging from 0C to 50C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'XRF Coating Thickness Measurement Devices' category

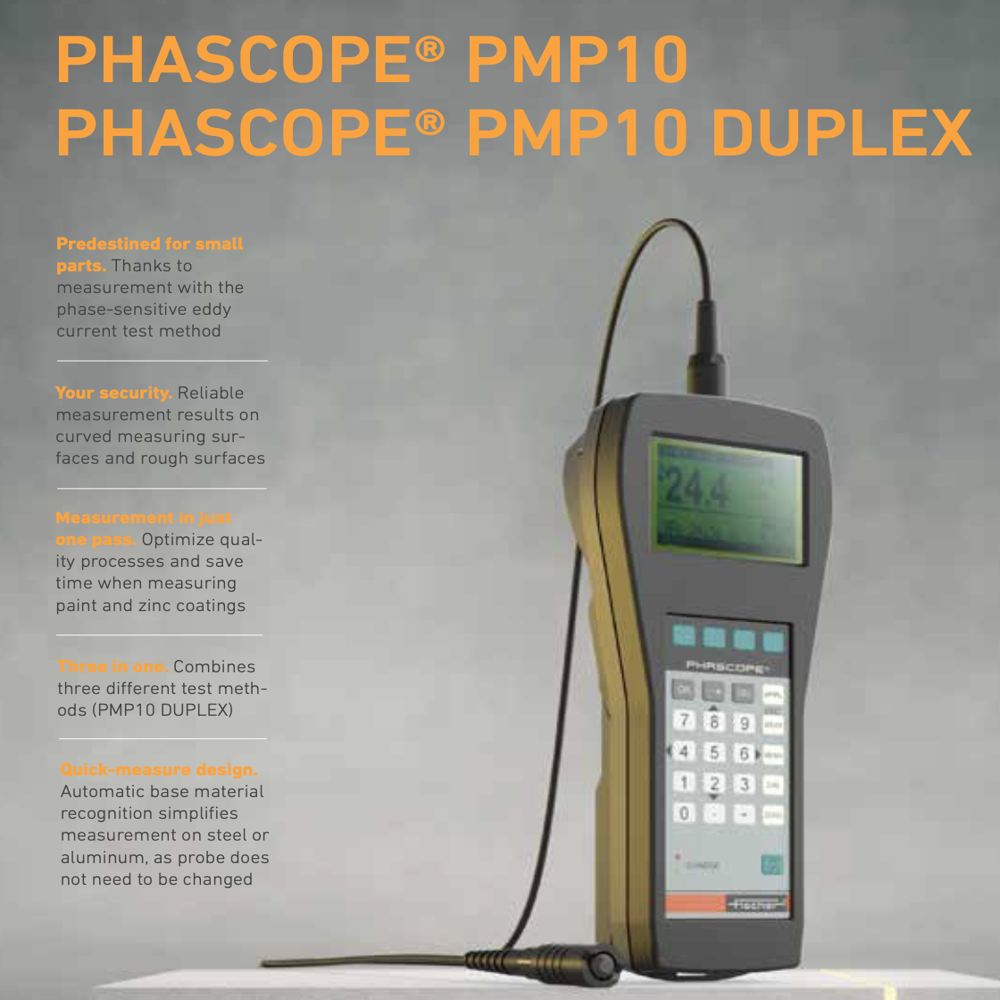

PHASCOPE PMP10 DFT METER Minimum Order Quantity : 1 Technology : Other, Magnetic Induction & Eddy Current Portable : Yes Condition : New Material : Rugged plastic housing Power Source : Other, Rechargeable Battery or Mains Adapter Sensors Specification : Integrated probe for Fe/NFe substrates Dimension (L*W*H) : 153 x 89 x 32 mm Weight : Approx. 370 g (including battery) Working Voltage : 100240 V AC, 50/60 Hz (mains adapter) Operating Temperature : 0C to 40C Power Consumption : Approx. 2 VA Humidity % : Max 95%, noncondensing Usage : Coating Thickness Measurement Indicator Specification : Digital LCD Display Speed Range : Up to 70 measurements/min

Send Inquiry

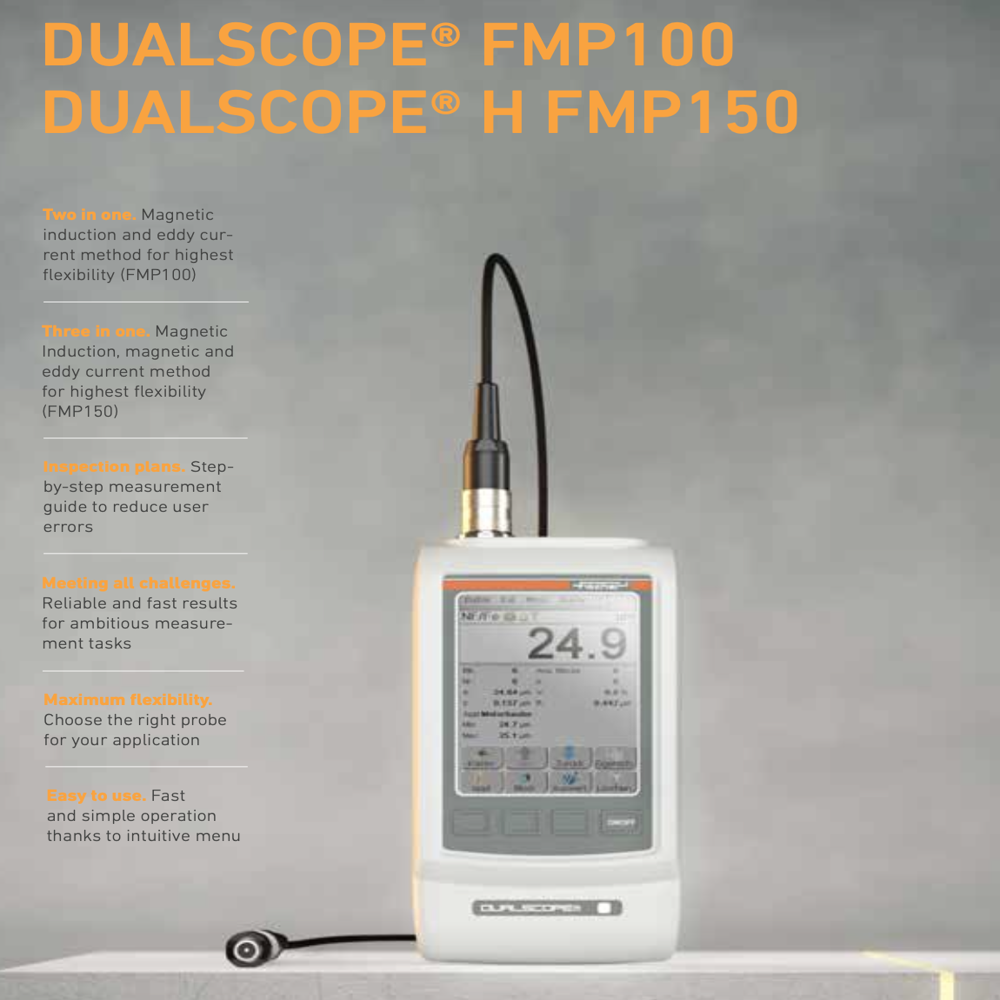

DUALSCOPE H FMP150 DFT METER Minimum Order Quantity : 1 Technology : Other, Magnetic induction and eddy current Portable : Other, Yes, handheld design Condition : New Material : Rugged plastic housing Power Source : Other, Rechargeable lithiumion battery & external power adapter Sensors Specification : Compatible with interchangeable F and N probes for ferrous and nonferrous metals Dimension (L*W*H) : 180 x 85 x 45 mm Weight : Approx. 500 g (without probe) Working Voltage : 100240 V AC, 50/60 Hz Operating Temperature : 0C to 40C Power Consumption : Approx. 2.5 W Humidity % : Max 95% RH, noncondensing Usage : Nondestructive coating thickness measurement Indicator Specification : Highcontrast LCD display with backlight Speed Range : Up to 70 measurements per minute, depending on probe
