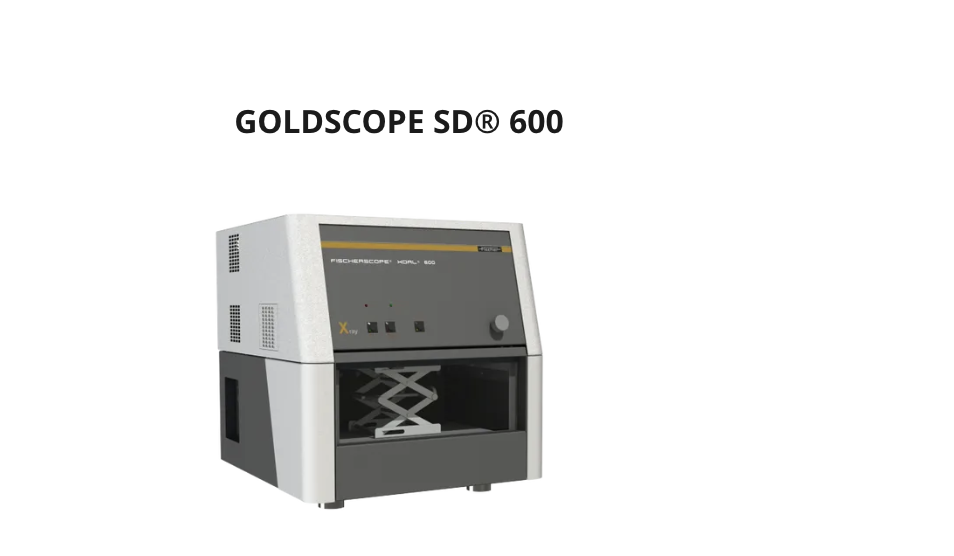

GOLDSCOPE SD 600

Get a Price/Quote

Product Details:

Resolution 0.01 m for layer thickness
Operating Voltage 230 V AC
Test Range From 0.5 m up to several mm (material dependent)
Port Size Standard USB, LAN
Interface Type USB, LAN, RS232, Printer Port
Mounting Type Bench-top
Equipment Type X-ray Fluorescence Spectrometer
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

GOLDSCOPE SD 600 Price And Quantity

Minimum Order Quantity 1 Number

GOLDSCOPE SD 600 Product Specifications

Measuring Range From Aluminium (Al) to Uranium (U)
Test Speed Up to 30 mm/s
Max Height 120 mm
Automation Grade Automatic/Manual
Power Supply 230 V AC, 50/60 Hz
Equipment Type X-ray Fluorescence Spectrometer
Specimen Size Upto 300 mm x 350 mm
Control Mode Touchscreen/PC Programmable
Humidity Up to 90% RH (non-condensing)
Machine Weight 120 kg
Number of Specimens Single or Multiple (batch mode)
Features Non-destructive analysis, multi-layer capability, integrated camera, auto-collimation
Accuracy High accuracy, deviation typically <1%
Frequency 50/60 Hz
Temperature 10C to 40C operating range
Application Precious metal analysis, thickness measurement, coating composition analysis
Response Time Results in as little as 10 seconds
Display Type 7-inch TFT Color Touchscreen & PC Display
Usage Material composition, coating and plating thickness analysis
Test Stroke 60 mm
Port Size Standard USB, LAN
Capacity X-ray tube power: 50 W
Resolution 0.01 m for layer thickness
Test Range From 0.5 m up to several mm (material dependent)
Operating Voltage 230 V AC
Mounting Type Bench-top
Interface Type USB, LAN, RS232, Printer Port
Test Width Up to 300 mm

X-ray Detector High-resolution Silicon Drift Detector (SDD)
Software Compatibility Windows-based analysis software included
Safety Standards Compliant with international X-ray safety norms
Data Storage Internal memory and export to PC
Calibration Automatic and standard sample calibration
Sample Holder Customizable with multiple fixtures
Laser Pointer Motorized XYZ sample stage with laser pointer
Sample Chamber Large chamber with illuminated viewing window
Measurement Spot Size 0.1 mm to 1 mm (user-selected)

GOLDSCOPE SD 600 Trade Information

Delivery Time 7 Days

Product Description

New generation highly precise Gold Analyzer

Advanced top to bottom ED-XRF Machine with high-resolution Silicon Drift Detector ( SDD) .

The Goldscope SD 600 provides an alll-in-one solutions for precious metal analysis and coating thickness

measurement, Multi-Layer Thickness Measurement , Solution Analysis and Alloy composition. High resolution Silicon Drift Detector with large aperture (3 mm, 118 mils) enables Goldscope SD 600 to achieve highest accuracy with a short measurement time.

Application

Jeweller, precious metals & dental alloys Precious Metal Analysis eg. Gold, Silver and Platinum group elements
Measuring coating thickness on sterling silver, rhodium finishes or gold alloys
Determination of complex multi layer-coating system
Platinum, Yellow , white gold , Rhodium and silver
Solutions for refineries, tunch assay offices and hallmarking Detection of PGM Group elements such as Iridium, Ruthenium, Osmium, Rhenium enabling an accurate precious metal analysis results.
Materials analysis of coatings and alloys (also thin coatings and low concentrations)

Features

Detector : Silicon Drift Detector ( SDD ) 20 mm ( 160 eV ) / SDD detector with 50 mm ( 140 eV )
Aperture (Collimator) : 4x changeable: 0.1 mm (3.9 mils), 0.3 mm (11.8 mils), 0.6 mm (23.6 mils), slot 0.5 x 0.15 mm (19.7 x 5.9 mils)
Element range : Aluminium (13) to Uranium (92) up to 24 elements simultaneously
Design: Bench top unit with upward opening hood, Top to bottom X-Ray
Repeatability : 0.5 for gold
Measurement time : 15 seconds
DPP+ for highly precise and fast anlysis of precious metals

High-Resolution, Versatile Analysis

The GOLDSCOPE SD 600 offers high-precision analysis for material composition and coating thickness, thanks to its Silicon Drift Detector and customizable spot sizes. Capable of detecting elements from aluminium to uranium, it delivers results in as little as 10 seconds, covering various industrial and laboratory needs.

Efficient and Easy Operation

With a user-friendly 7-inch touchscreen and PC-based software, the system offers intuitive control. Automated calibration, fast scanning, and a generous sample chamber paired with a motorized XYZ stage streamline both single and batch analyses, minimizing downtime and ensuring repeatability.

Robust Safety and Data Handling

Compliant with international X-ray safety standards, the GOLDSCOPE SD 600 ensures operator protection. Results are securely stored internally and can be exported to a PC through standard USB and LAN connections, facilitating efficient data management and reporting.

FAQ's of GOLDSCOPE SD 600:

Q: How does the GOLDSCOPE SD 600 ensure accurate measurements for coating thickness and material composition?

A: The GOLDSCOPE SD 600 uses a high-resolution Silicon Drift Detector (SDD) and supports both automatic and standard sample calibration. Its non-destructive XRF technology, auto-collimation, and integrated camera ensure precise targeting and measurement-achieving deviations typically less than 1%.

Q: What types of samples and sizes can be analyzed with this device?

A: You can analyze single or multiple specimens up to 300 mm x 350 mm and a maximum height of 120 mm in the spacious, illuminated sample chamber. The sample holder is customizable, accommodating a wide variety of shapes and fixtures suitable for precious metals, coatings, and various industrial components.

Q: Where can the GOLDSCOPE SD 600 be installed and used?

A: This benchtop spectrometer is designed for laboratory, production, and quality control environments. It operates reliably in ambient temperatures from 10C to 40C and humidity up to 90% RH (non-condensing), making it a versatile fit for diverse industrial settings.

Q: What is the testing process like, and how long does it take to receive results?

A: Specimens are placed in the sample chamber, aligned using the motorized XYZ stage and laser pointer. The measurement spot size is user-selected, and automatic analysis typically delivers results in as little as 10 seconds. Data is instantly displayed on the touchscreen or PC and can be exported or printed as needed.

Q: How is data managed and what are the connectivity options?

A: Measurement data is stored internally and can be easily exported to PC using USB, LAN, or RS232 ports. The included Windows-based analysis software enables comprehensive data management, report generation, and system calibration.

Q: What are the key benefits of using the GOLDSCOPE SD 600 for precious metal analysis and coating measurement?

A: The SD 600 provides rapid, reliable, and non-destructive analysis with high accuracy and multi-layer capability. Its adaptability for batch testing, integrated camera, and programmable operations help increase productivity in industrial inspection, quality assurance, and research environments.
