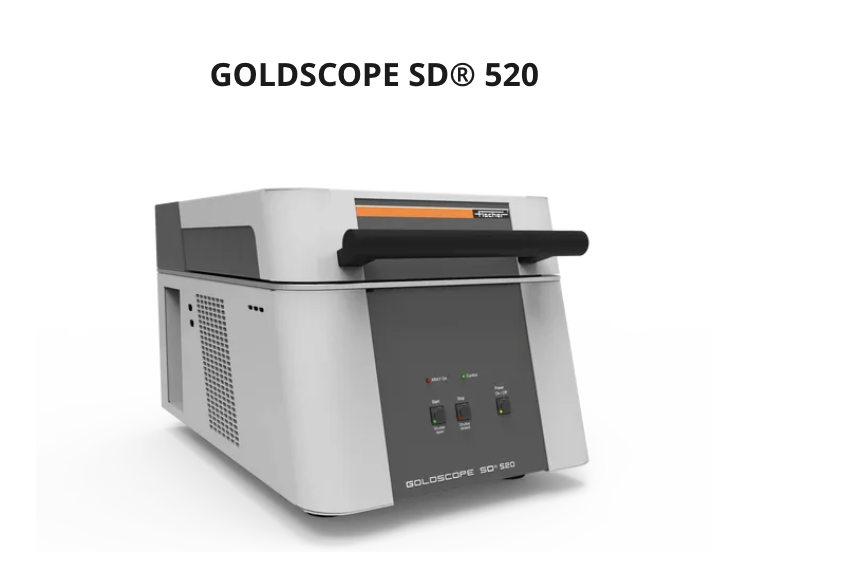

GOLDSCOPE SD 520

Get a Price/Quote

Product Details:

Resolution <130 eV (Mn K)
Operating Voltage 100-240 V AC, 50/60 Hz
Temperature Ambient 15C - 35C
Features Non-destructive, rapid analysis, database storage, customizable reports
Humidity Ambient 15% - 85%
Test Range From PPM level to 100%
Hardness Not applicable (material independent)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

GOLDSCOPE SD 520 Price And Quantity

Minimum Order Quantity 1 Number

GOLDSCOPE SD 520 Product Specifications

Max Height Sample size up to 60 mm
Accuracy 0.1% (typical for gold and precious metals)
Response Time Instantaneous to under 60 seconds
Mounting Type Benchtop
Hardness Not applicable (material independent)
Test Range From PPM level to 100%
Test Width Standard 1 cm area
Interface Type USB, Ethernet
Port Size Standard analysis chamber
Humidity Ambient 15% - 85%
Features Non-destructive, rapid analysis, database storage, customizable reports
Temperature Ambient 15C - 35C
Operating Voltage 100-240 V AC, 50/60 Hz
Resolution <130 eV (Mn K)
Capacity High throughput XRF analysis
Usage Laboratory / Industrial / Retail
Number of Specimens Single or multiple
Application Gold, precious metal and alloy analysis; quality control; authentication; jewelry, refinery, and production
Frequency 50/60 Hz
Gas Pressure Not required (air-cooled)
Specimen Size 0.1 mm to 20 mm thick
Display Type Large color touchscreen + PC display
Test Stroke Manual, adjustable
Power Supply 230 V, 50 Hz
Automation Grade Semi-automatic
Control Mode Fully automatic/PC software driven
Machine Weight 70 kg
Equipment Type High-precision X-ray fluorescence spectrometer
Measuring Range Na (Sodium) to U (Uranium)
Test Speed Upto 300 spectra/min

X-ray Tube Current 1 mA
Sample Chamber Size 120 mm x 120 mm x 60 mm
Analysis Time 10-60 seconds (adjustable)
Spectral Range 1 keV to 40 keV
Calibration Method Pre-installed multi-matrix calibration
Detector Type Silicon Drift Detector (SDD)
Software Compatibility Windows 10 and above
Radiation Safety Full lead shielding with interlock system
X-ray Tube Voltage 50 kV max
Detection Limit Lowest up to 1 ppm for gold
Data Output Format PDF, Excel, CSV, Customizable printouts

GOLDSCOPE SD 520 Trade Information

Delivery Time 7 Days

Product Description

A benchtop gold checking machine with an upwards-opening hood, equipped with a high-end Silicon Drift Detector and DPP+.

The high-performance X-Ray Fluorescence gold testing machine designed for rapid, non-destructive testing and accurate coating thickness measurement of gold and silver alloys.

Precision and Speed in Metal Analysis

Equipped with a high-resolution silicon drift detector and fast analysis times (10-60 seconds), the GOLDSCOPE SD 520 excels in providing precise compositional data for gold, platinum, and other precious alloys. High throughput capability (up to 300 spectra/min) ensures efficiency across laboratory and industrial applications.

Safety and Versatility Assured

Designed with comprehensive lead shielding and an interlock safety system, the instrument prioritizes user safety. Its spacious sample chamber and broad measuring range-from sodium to uranium-support versatile applications, including jewelry authentication, refinery operations, and alloy quality assurance.

User-friendly Operation and Reporting

Featuring a large color touchscreen display and PC interface, the GOLDSCOPE SD 520 offers seamless operation. Pre-installed calibrations, customizable report formats (PDF, Excel, CSV), and database storage enable simplified data management and easy integration with existing laboratory or quality control systems.

FAQ's of GOLDSCOPE SD 520:

Q: How does the GOLDSCOPE SD 520 ensure accurate elemental analysis?

A: The instrument features a high-performance silicon drift detector and utilizes pre-installed multi-matrix calibration methods to deliver reliable precision (typical accuracy: 0.1% for gold and precious metals), even at trace levels as low as 1 ppm.

Q: What is the process for analyzing samples with this XRF spectrometer?

A: Place your specimen (0.1 mm to 20 mm thick, up to 60 mm tall) into the sample chamber, select or adjust analysis parameters via the touchscreen or PC software, and obtain results within 10-60 seconds. Data can be exported in multiple formats for further review.

Q: When should I use the GOLDSCOPE SD 520 over other testing methods?

A: Choose this instrument when you need rapid, non-destructive testing of precious metals with high accuracy-for jewelry authentication, gold purity checks, alloy composition validation, or rapid quality control in production.

Q: Where can this equipment be installed and used?

A: The benchtop GOLDSCOPE SD 520 is suitable for laboratories, industrial settings, retail environments, refineries, and quality control rooms. It operates effectively within ambient temperature (15-35C) and humidity (15%-85%) ranges.

Q: How does the GOLDSCOPE SD 520 support data management and reporting?

A: Analyzed data can be stored in a database and exported in PDF, Excel, CSV, or customizable printouts. This functionality enhances traceability and simplifies integration into digital documentation systems.

Q: What safety features are included with this device?

A: The system is designed with complete lead shielding and an interlock mechanism, ensuring users are protected from X-ray radiation throughout operation.

Q: What are the main benefits of using the GOLDSCOPE SD 520?

A: Key benefits include high-speed, non-destructive testing, excellent detection limits, reliable accuracy, versatile software compatibility, customizable reporting, and robust user safety features, all optimized for precious metal analysis and quality assurance.
