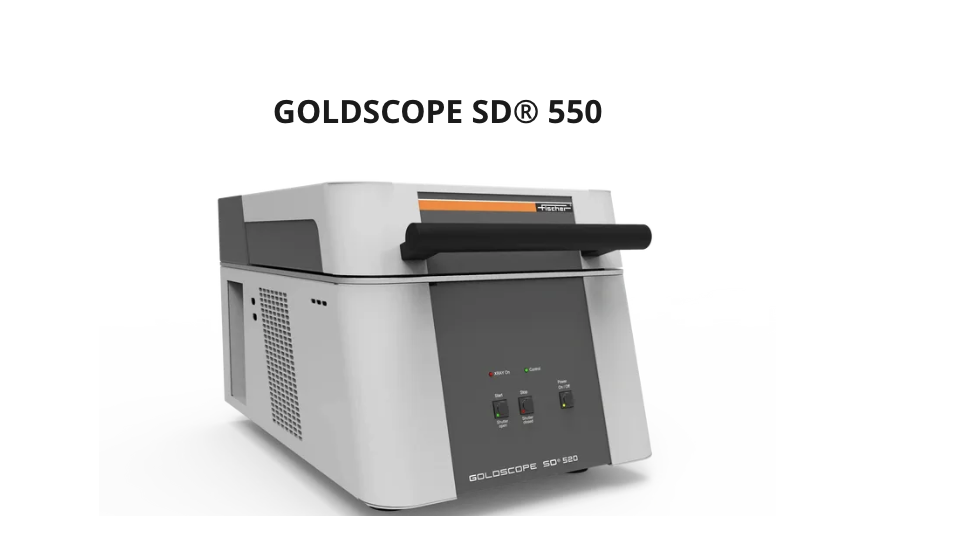

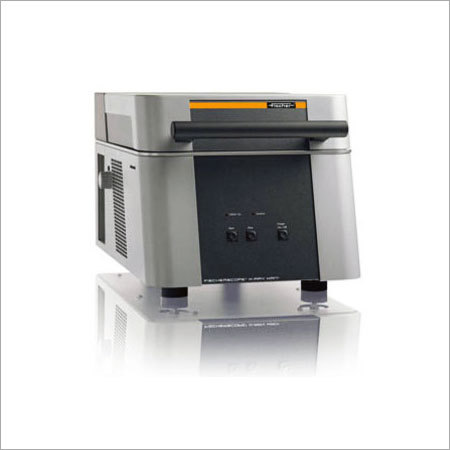

GOLDSCOPE SD 550

Get a Price/Quote

Product Details:

Specimen Size 10 mm minimum
Resolution 0.01 m
Temperature 10C to 40C
Max Height 200 mm
Power Supply 230 V AC, 50 Hz
Equipment Type X-ray Fluorescence (XRF) Spectrometer
Features Non-destructive testing, Automatic calibration, Auto focus, Data storage, Multi-language support
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

GOLDSCOPE SD 550 Price And Quantity

Minimum Order Quantity 1 Number

GOLDSCOPE SD 550 Product Specifications

Application Precious Metal Analysis
Usage Laboratory/Industrial
Automation Grade Automatic
Mounting Type Bench Top
Capacity Up to 10 kg
Machine Weight Approx. 90 kg
Display Type TFT LCD Touchscreen
Test Width 320 mm
Frequency 50 Hz
Measuring Range Elements from Al (13) to U (92)
Accuracy 1%
Humidity Up to 90% RH
Test Range 0.005 - 2000 m
Number of Specimens 1
Features Non-destructive testing, Automatic calibration, Auto focus, Data storage, Multi-language support
Port Size Standard
Interface Type USB, Ethernet
Gas Pressure 5-8 bar
Operating Voltage 230 V AC
Response Time < 3 seconds
Test Stroke 250 mm
Resolution 0.01 m
Specimen Size 10 mm minimum
Temperature 10C to 40C
Test Speed 40 mm/sec
Equipment Type X-ray Fluorescence (XRF) Spectrometer
Control Mode Microprocessor Based
Power Supply 230 V AC, 50 Hz
Max Height 200 mm

Excitation Source X-ray tube, 50 kV
Detection Limit 0.001% (10 ppm)
Detector Type Silicon Drift Detector (SDD)
Operating System Windows Embedded
Collimator Size 0.2/0.5/1 mm
Protective Atmosphere Optional nitrogen purge
Calibration Multi-point automatic
Sample Holder Multi-position, rotatable
Data Output PDF, Excel, CSV
Safety Features Interlock, Radiation shield

GOLDSCOPE SD 550 Trade Information

Delivery Time 7 Days

Product Description

Equipped with a high-resolution Silicon Drift Detector (SDD) and multiple collimators, this gold testing machine is ideal for hallmarking, assaying, gold refineries, and testing centers. Whether you need a reliable gold checking machine for precise analysis or non-destructive testing, it provides unparalleled accuracy and efficiency.

Accurate Metal Analysis with Advanced Detection

Equipped with a silicon drift detector (SDD) and a multi-point automatic calibration, the GOLDSCOPE SD 550 offers exceptional measurement accuracy down to 0.001%. Its reliable performance spans elements from Aluminum (Al) to Uranium (U), providing results in under three seconds. The instrument's high-resolution and user-friendly software make it suitable for varied testing environments.

Enhanced Safety and User Experience

With built-in interlocks, radiation shielding, and an embedded Windows OS, safety remains a top priority. The intuitive TFT LCD touchscreen, automatic focus, and multi-language support enhance user comfort. Extensive data outputs and easy connectivity through USB and Ethernet facilitate seamless integration in laboratory or industrial workflows.

FAQ's of GOLDSCOPE SD 550:

Q: How does the GOLDSCOPE SD 550 detect precious metals with high accuracy?

A: The GOLDSCOPE SD 550 employs a silicon drift detector (SDD) paired with a powerful 50 kV X-ray tube and multipoint automatic calibration, enabling precise measurements with a detection limit as low as 0.001% (10 ppm) and an overall measurement accuracy of 1%.

Q: What is the process for analyzing a specimen with the GOLDSCOPE SD 550?

A: To analyze a specimen, simply place it on the multi-position, rotatable sample holder. The instrument automatically focuses and calibrates, then performs non-destructive XRF analysis. Results appear on the touchscreen in seconds and can be saved or exported in PDF, Excel, or CSV formats.

Q: When should I use the optional nitrogen purge feature?

A: The nitrogen purge is recommended when you need to measure elements that are sensitive to air interference, such as light elements, to improve detection accuracy. This feature can be activated as needed based on your specific testing requirements.

Q: Where is the GOLDSCOPE SD 550 best deployed?

A: The instrument is ideally suited for laboratory and industrial environments, including quality control labs, precious metal trading centers, and jewelry manufacturing facilities. Its benchtop design makes it easy to integrate into existing workflows.

Q: What are the main benefits of using the GOLDSCOPE SD 550?

A: Key benefits include fast, non-destructive testing, high accuracy, automatic calibration and focus, data storage and reporting flexibility, multi-language support, and robust safety features, making it reliable and user-friendly for dealers, manufacturers, and exporters.

Q: How does the GOLDSCOPE SD 550 handle safety concerns with X-ray usage?

A: Safety is managed through a comprehensive system of interlocks and radiation shields, ensuring that users are protected from X-ray exposure during operation. The equipment also complies with standard electrical and operational safety requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Gold Testing Machine' category

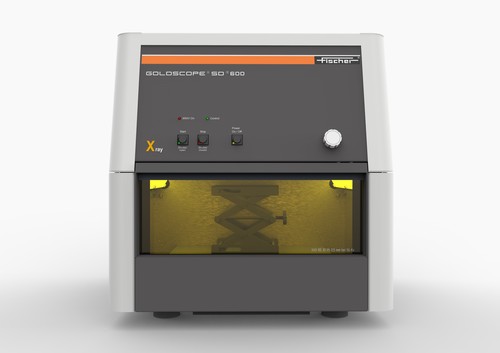

GOLDSCOPE SD 600 Minimum Order Quantity : 1 Power Supply : 230 V AC, 50/60 Hz Application : Precious metal analysis, thickness measurement, coating composition analysis Machine Weight : 120 kg Usage : Material composition, coating and plating thickness analysis Test Speed : Up to 30 mm/s Temperature : 10C to 40C operating range Test Range : From 0.5 m up to several mm (material dependent) Control Mode : Touchscreen/PC Programmable Operating Voltage : 230 V AC Number of Specimens : Single or Multiple (batch mode) Display Type : 7inch TFT Color Touchscreen & PC Display Automation Grade : Automatic/Manual

Send Inquiry

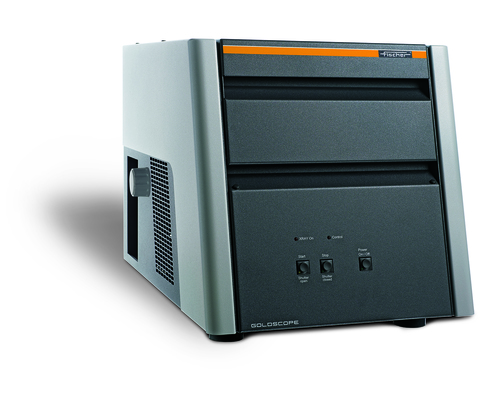

GOLDSCOPE SD 510 Gold Testing Instrument Minimum Order Quantity : 1 Power Supply : AC 230 V 50 / 60 Hz Application : Material analysis, precious metal analysis and their alloys in composition and coating thickness. Machine Weight : 45 Kilograms (kg) Usage : Gold and Silver Testing Voltage : 230 Volt (v) Color : Grey and Black Dimension (L*W*H) : 403 x 588 x 365 Millimeter (mm) Material : Metal Test Speed : 30 Seconds Temperature : upto 45 Celsius (oC) Test Range : Aluminium to Uranium Product Type : XRF Gold Testing Classification : SI PIN Detector Number of Specimens : One at a time Weight : 45 Kilograms (kg)

Send Inquiry

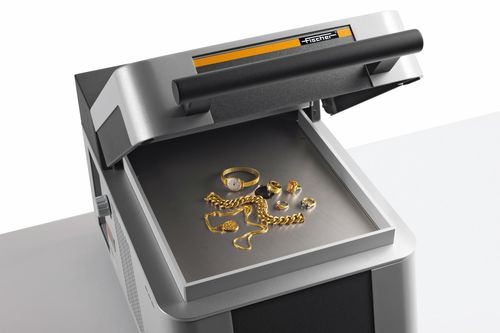

XRF Analyzer for Gold Purity Testing Minimum Order Quantity : 1 Power Supply : AC 230 V 50 / 60 Hz Application : Precious Metal Testing such as Gold and Silver Machine Weight : 45 Kilograms (kg) Usage : Gold and Silver Testing Voltage : 115230 Volt (v) Color : White, Grey Dimension (L*W*H) : 403 x 588 x 365 Millimeter (mm) Test Speed : 30 Seconds Test Range : Aluminium to Uranium Control Mode : Automatic Product Type : Gold Testing XRF MAchine Classification : XRF MAchine
