GOLDSCOPE SD 515 SD 515

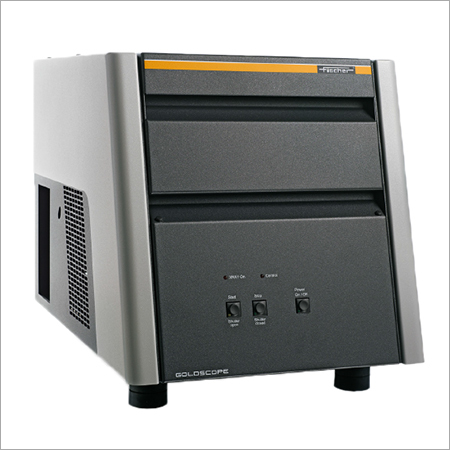

GOLDSCOPE SD 515


GOLDSCOPE SD 515 is a compact entry-level X-ray fluorescence measuring instrument for fast and non-destructive analysis and coating thickness measurement of gold and silver alloys.

It is used for the non-destructive analysis of jewellery, coins, and precious metals. The machine is ideally used for the analysis of precious metals and their alloys for composition purity and coating thickness. The machine is used for measuring simultaneously up to 24 elements in the range of chlorine (17) to uranium(92).
The silicone PIN detector provides good detection sensitivity with high accuracy. The device works with stability and accuracy with a considerable reduction in recalibration thus saving time as well as efforts.

Design:

  • An ergonomically engineered user-friendly device in a compact size with longer service life
  • It is light in weight and requires less space for installation.
  • The door of the measurement chamber does not open upwards, but towards the front which allows placing notebook for operation onto the instrument thus saves even more space.
  • The X-ray source and detector assembly is located in the instrument's lower chamber for quick and easy sample positioning. It is also fitted with the integrated video-microscope with zoom and cross-hairs that simplifies sample placement and also allows a precise measuring spot adjustment.
  • The system runs on powerful and user-friendly WinFTM® software which ensure smooth operations and evaluation of measurements as well as the clear presentation of measurement data.



Features:

  • Compact design, efficient, lightweight instrument (appr. 25 kg, 55 lb) and small footprint
  • Designed particularly for analysis of gold alloy at reasonable prices
  • Equipped with a SI-PIN detector that is also suitable for more complex analyses with other elements
  • The machine has been designed for quick and sampling position



Typical fields of applications:

  • Jewellery, precious metals and dental alloys
  • Yellow and white gold
  • Platinum and silver
  • Rhodium
  • Alloys and coatings
  • Multi-layer coatings



General Specification

  • Intended use: Energy dispersive X-ray measuring instrument (EDXRF) to analyze precious metals and their alloys in composition and coating thickness.
  • Element range: Chlorine (17) to Uranium (92) – up to 24 elements simultaneously
  • Repeatability:≤ 1 ‰ for gold, measurement time 60 sec
  • Design:Bench top unit with towards the front opening hood
  • Measuring direction: Bottom-up



X-Ray Source

  • X-ray tube:Tungsten tube, thermally stabilized
  • High voltage:Three steps: 30 kV, 40 kV, 50 kV
  • Aperture (Collimator): Ø 1 mm (39 mils)
  • Measurement spot:Aperture diameter plus 200 μm (8 mils),at measurement distance MD= 0mm



X-Ray Detection

  • X-ray detector:Silicon PIN detector with peltier cooling
  • Resolution (fwhm for Mn-Kα):≤ 180 eV
  • Measuring distance:0 … 25 mm (0 … 1 in) Distance compensation with patented DCM method for simplified
    measurements at varying distances. For particular applications or for
    higher demands on accuracy an additional calibration might be necessary.



Sample Alignment

  • Sample positioning: Manually
  • Video microscope:High-resolution CCD color camera for optical monitoring of the measurement
    the location along the primary beam axis,Cross hairs with a calibrated scale (ruler)
    and spot-indicator, Adjustable LED illumination
  • Zoom factor: Digital 1x, 2x, 3x, 4x



Sample Stage

  • Design: Fixed sample support
  • Usable sample placement area 320 x 350 mm (12.6 x 13.8 in)
  • Max. sample weight:13 kg (29 lb)
  • Max. sample height:115 mm (4.5 in)

Electrical Data
  • Power supply: AC 115 V or AC 230 V 50 / 60 Hz
  • Power consumption: max. 120 W, without evaluation PC
  • Protection class:IP40
Dimensions
  •  External dimensions: Width x depth x height [mm]: 404 x 455 x 367 mm, [in]: 16 x 18 x 14.5
  • Weight:Approx. 25 kg (55 lb)
Environmental Conditions
  • Operating temperature:10 °C – 40 °C / 50 °F – 104 °F
  • Storage/Transport Temperature: 0 °C – 50 °C / 32 °F – 122 °F
  • Admissible air humidity: ≤ 95 %, non-condensing
Evaluation Unit
  • Computer:Windows®-PC
  • Software:Standard: Fischer WinFTM® BASIC including PDM®
  • Optional: Fischer WinFTM® SUPER
Standards
  • CE approval: EN 61010
  • X-Ray standards: DIN ISO 3497 and ASTM B 568
  • Approval: Individual acceptance inspection as a fully protected instrument
  • according to the German regulations "Deutsche Rontgenverordnung-RoV".



Product details

Operation Mode

Automatic

Power Type

Electric

Power Supply

AC 230 V 50 / 60 Hz

Protection Class

IP40

Dimension

403 x 588 x 365 mm
