Wires Coating Thickness Measurement

Applications

Measurements on very small flat components and structures such as printed circuit boards, contacts or lead frames
Analysis of very thin coatings, e.g., gold/palladium coatings of 0.1 m (0.004 mils)
Measurement of functional coatings in the electronics and semiconductor industries
Determination of complex multi-coating systems
Automated measurements, e.g., in quality control

Features

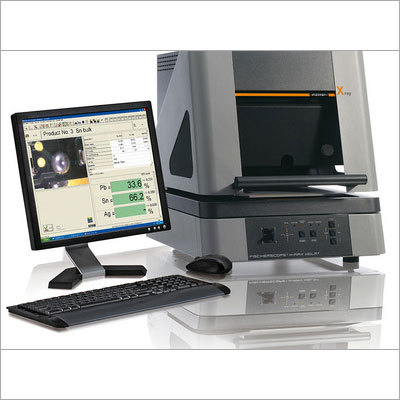

The FISCHERSCOPE X-RAY XDV- is a universally applicable energy-dispersive x-ray measuring instrument. It is particularly well suited for non-destructive analyses and measurements of coating thicknesses on very small components and structures, even with complex coating systems.

Design

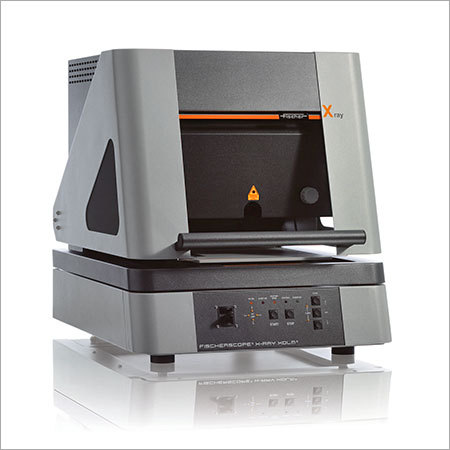

The FISCHERSCOPE X-RAY XDV- is designed as a user-friendly bench-top instrument. It is equipped with a high-precision, programmable XY-stage and an electrically driven Zaxis. The housing features a slot in the side allowing for the measurement of even large components, e.g., pc-boards. The sample stage moves into the loading position automatically, when the protective hood is opened. A laser pointer serves as a positioning aid and supports the quick alignment of the sample to be measured. A high-resolution color video camera simplifies the precise determination of the measurement spot.

Specification

Intended use Energy dispersive x-ray fluorescence measuring instrument (EDXRF) to measure thin coatings and coating systems on very small flat structures
Element range Aluminium Al (13) to Uranium U (92) up to 24 elements simultaneously
Measuring direction Top down

X-Ray Source

X-ray tube Standard: Micro focus tube with tungsten target and beryllium window Optional: Micro focus tube with molybdenum target and beryllium window.
Primary filter 4x changeable: Ni 10 m (0.4 mils); free; Al 1000 m (40 mils); Al 500 m (20 mils)

X-Ray Detection

X-ray detector Peltier-cooled silicon-drift-detector (SDD)

Dimensions

External dimensions Width x depth x height [mm] 660 x 835 x 720 mm (26 x 33 x 28.3 in)
Weight Approx. 135 kg (297 lb)
Interior dimensions of chamber Width x depth x height 580 x 560 x 145 mm (22.8 x 22 x 5.7 in )
