Fischer XRF Analyzer

Get a Price/Quote

Product Details:

Humidity Max 85% non-condensing
Frequency 50/60 Hz
Application Coating Thickness, Material Analysis, Plating, Alloy ID, Quality Control
Number of Specimens Single or batch analysis
Test Range Up to 5 layers, 24 elements (Al to U)
Temperature Operating: 10C to 40C
Equipment Type X-ray Fluorescence (XRF) Analyzer
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Fischer XRF Analyzer Price And Quantity

Minimum Order Quantity 1 Piece

Fischer XRF Analyzer Product Specifications

Power Supply 230 V AC, 50/60 Hz
Port Size Standard chamber size: 310 mm x 300 mm x 290 mm
Usage Laboratory, Industrial, QA/QC
Gas Pressure Atmospheric (No inert gas required)
Display Type High resolution LCD touchscreen
Mounting Type Benchtop
Features Non-destructive testing, Multilayer measurement, Elemental analysis, Fast results, Compact design
Specimen Size Up to 300 mm x 300 mm
Test Range Up to 5 layers, 24 elements (Al to U)
Capacity Multiple specimen holders
Number of Specimens Single or batch analysis
Test Speed Up to 10 measurements/min
Test Width 160 mm
Application Coating Thickness, Material Analysis, Plating, Alloy ID, Quality Control
Test Stroke Manual and automated
Frequency 50/60 Hz
Humidity Max 85% non-condensing
Accuracy 1% (application dependent)
Interface Type USB, Ethernet, RS-232
Measuring Range 0.01 m to 40 m (coating thickness)
Automation Grade Semi-automatic
Resolution 0.001 m (coating thickness)
Control Mode Touchscreen and PC software control
Max Height 290 mm (chamber height)
Operating Voltage 230 V AC
Response Time < 10 seconds (typical analysis)
Equipment Type X-ray Fluorescence (XRF) Analyzer
Machine Weight Approx. 40 kg
Temperature Operating: 10C to 40C

Fischer XRF Analyzer Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 3-4 Week

Product Description

Specification

Dimension	403 x 588 x 444 mm
Weight	Approx 45 kg
Power Supply	AC 115 V or AC 230 V 50 / 60 HzAC 115 V or AC 230 V 50 / 60 Hz
Application/Usage	Industrial
Protection Class	IP40

X-ray tube:

High voltage:Three steps: 30 kV, 40 kV, 50 kV
Aperture (Collimator):XDLM-PCB 200/210: 0.1 mm (3.9 mils), optional 0.2 mm (7.9 mils), slot 0.3 x 0.05 mm (11.8 x 2 mils)
Standard (523-440): 0.1 mm (3.9 mils); 0.2 mm (7.9 mils); 0.05 x 0,05 mm (2 x 2 mils); 0.2 x 0.03 mm (7.9 x 1.2 mils)
Optional (523-366): 0.1 mm (3.9 mils); 0.2 mm (7.9 mils); 0.3 mm (11.8 mils); 0.3 x 0.05 mm (11.8 x 2 mils)

Unmatched Analytical Performance

Fischer XRF Analyzer enables precise measurement of coating thickness from 0.01 m to 40 m and detects up to 24 elements, making it ideal for plating, alloy identification, and multilayer quality control. Its superior accuracy (1%, application dependent) and fast analysis time (<10 seconds per test) optimize productivity across single or batch specimen analysis.

Advanced Safety and Compliance

Engineered with lead glass viewing window, door interlock, and X-ray warning lights, the analyzer prioritizes user safety while fully complying with ISO 3497, ASTM B568, and RoHS standards. Its factory and user calibration enable consistent, traceable measurements for regulated industries and demanding QA/QC environments.

Seamless Operation and Versatility

The system offers both manual and automated test strokes, illuminated sample chambers, multilingual interfaces, and streamlined data management through USB, Ethernet, or direct printing. Its robust build (approx. 40 kg), large chamber, and support for multiple specimen holders suit diverse laboratory and industrial needs.

FAQs of Fischer XRF Analyzer:

Q: How does the Fischer XRF Analyzer perform coating thickness and elemental analysis?

A: The analyzer uses a micro-focused X-ray tube and either a proportional counter or Silicon Drift Detector (SDD) to emit and detect X-ray fluorescence signals from sample surfaces. WinFTM software interprets these signals to determine coating thickness (up to 5 layers) and elemental composition (24 elements, Al to U), delivering results in under 10 seconds.

Q: What benefits does the XRF Analyzer offer for quality control and manufacturing applications?

A: This instrument provides non-destructive, rapid, and highly accurate measurements, enhancing process optimization and regulatory compliance in quality assurance (QA/QC) workflows. Its multi-element and multilayer capabilities are ideal for industries like plating, material analysis, and alloy identification.

Q: Where can the Fischer XRF Analyzer be used?

A: Its versatile benchtop design, semi-automatic operation, and comprehensive chamber size make it well-suited for laboratories, industrial production lines, and research facilities, particularly in quality control, material inspection, and plating analysis settings across India and globally.

Q: What is the process for calibrating the analyzer?

A: The instrument arrives factory calibrated for standard applications. For specific materials or requirements, users can perform in-house calibration using provided standards, ensuring accurate and application-tailored results with the WinFTM software interface.

Q: How do safety features protect users during operation?

A: Operator safety is ensured by built-in lead glass viewing windows, interlocked doors that prevent X-ray emission unless properly closed, and visible X-ray warning lightsmeeting international safety protocols for X-ray analytical equipment.

Q: What data output and connectivity options are available?

A: Measurement data can be exported via USB and Ethernet or sent directly to printers for reports. The system also supports RS-232 integration and generates reports through WinFTM softwares powerful built-in database for secure documentation and traceability.

Q: When is routine maintenance needed, and how long does the X-ray tube last?

A: The X-ray tube is rated for over 10,000 hours of use under standard operating conditions. Routine maintenance typically includes periodic chamber cleaning and software updates, ensuring the analyzers longevity and reliable performance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Coating Thickness Edxrf' category

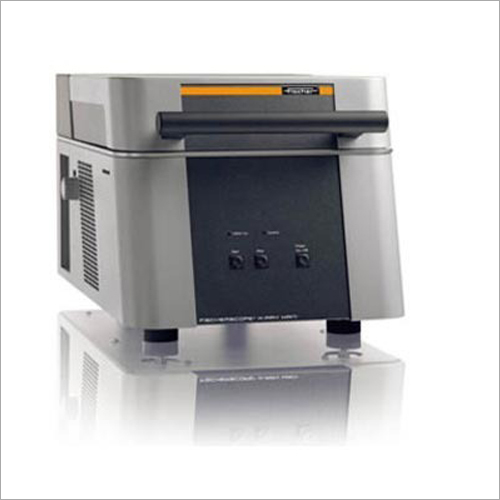

XRF Coating Thickness Measurement Minimum Order Quantity : 1 Voltage : 200220 Volt (v) Usage : Industrial Material : Metal Color : White Power Supply : Electric
