Phascope Pmp10

Get a Price/Quote

Product Details:

Usage Precious Metal Testing
Application Coating thickness on PC Boards and electroplated surfaces
Machine Weight 45 Kilograms (kg)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Phascope Pmp10 Price And Quantity

Minimum Order Quantity 1 Piece

Phascope Pmp10 Product Specifications

Application Coating thickness on PC Boards and electroplated surfaces
Machine Weight 45 Kilograms (kg)
Usage Precious Metal Testing

Phascope Pmp10 Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 3-4 Week
Main Domestic Market All India

Product Description

Phascope Pmp10

PMP10 is a Hand-held instrument for measuring coating thickness on PC Boards and electroplated surfaces

The hand-held PHASCOPE PMP10 is ideally suited for quality control in the electroplating and printed circuit board (PCB) industries. Because the instrument employs the phase-sensitive eddy current method (ISO 21 968), it allows the measurement of metal coatings on any substrate. A specially designed probe even enables measurements in PCB through holes.

Applications

The phase-sensitive eddy current method offers great advantages in measuring small objects such as screws, nuts and bolts, since the geometry of the part being measured exerts very little influence on the measurement itself: Even rough surfaces can be measured precisely with the PHASCOPE PMP10. This method also enables non-contact measuring; for example, the thickness of copper plating on a circuit board can be measured irrespective of protective lacquer coatings. Using specialised probes optimised for specific measurement tasks, the PHASCOPE PMP10 is particularly suitable for the following:

Measuring coating thickness of nickel on steel
Measuring zinc or copper on steel despite rough surfaces and complex surface geometries
Measuring the thickness of non-ferrous metals on non-ferrous metals, given sufficient difference in conductivity, e.g. copper on brass or bronze
Measuring the thickness of non-ferrous metals on insulating substrates, such as copper layers on circuit boards.

Instrument features

Extensive evaluation and statistics functions
Outlier control and tolerance monitoring options
Various languages to choose from
Battery and/or continuous operation via plug-in charger (included)
Storage of up to 20,000 readings
Data transfer via RS232 interface

Specification

Type	PCB COATING THICKNESS MEASUREMENT
Brand	Fischer
Display Type	Digital
Data transfer	via RS232 interface
Storage	up to 20,000 readings

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Coating Thickness Measurement For PCB' category

Handheld Pcb Coating Thickness Measurement Device Minimum Order Quantity : 1 Usage : Coating Thickness Measurement Machine Weight : 45 Kilograms (kg)

Send Inquiry

Fischerscope X-Ray XULM-PCB Minimum Order Quantity : 1 Usage : Coating thickness on PC Boards and electroplated surfaces Machine Weight : 45 Kilograms (kg)

Send Inquiry

PCB Coating Thickness Measurement: XDLM-PCB 200 Minimum Order Quantity : 1 Usage : Gold and Silver Testing Machine Weight : 45 Kilograms (kg)

Send Inquiry

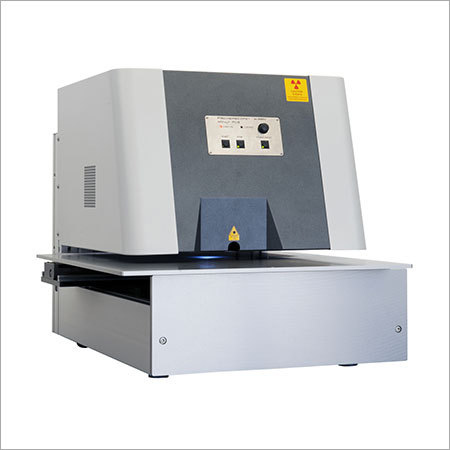

PCB Coating Measurement Instrument: XDV-u PCB Minimum Order Quantity : 1 Usage : Precious Metal Testing Machine Weight : 45 Kilograms (kg)
