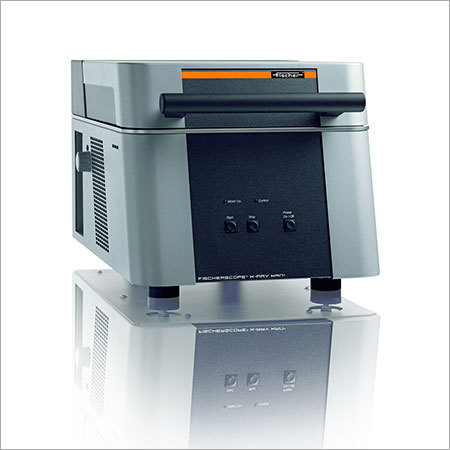

Goldscope SD 515

Get a Price/Quote

Product Details:

Dimension (L*W*H) 403 x 588 x 365 Millimeter (mm)
Material Metal
Power Supply AC 230 V 50 / 60 Hz
Color Grey and Black
Voltage 230 Volt (v)
Usage Gold and Silver Testing
Application Gold Purity Testing
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Goldscope SD 515 Price And Quantity

Minimum Order Quantity 1 Piece

Goldscope SD 515 Product Specifications

Usage Gold and Silver Testing
Application Gold Purity Testing
Weight 45 Kilograms (kg)
Color Grey and Black
Voltage 230 Volt (v)
Dimension (L*W*H) 403 x 588 x 365 Millimeter (mm)
Machine Weight 45 Kilograms (kg)
Material Metal
Power Supply AC 230 V 50 / 60 Hz

Goldscope SD 515 Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 3-4 Week
Main Domestic Market All India

Product Description

Goldscope SD 515 is a less expensive fundamental type of X-Ray Fluorescence Measuring Instrument for non-destructive and swift Analysis and Coating Thickness Gauging of Silver and Gold Alloys. We are a leading sales company of high quality range used for the analysis of expensive metals and their alloys in composition and coating thickness.

Features of Gold Tasting Machine Goldscope SD 515:

Excellent precision in analysis and coating thickness measurement
Reduces the requirements of recalibration thus saving time and effort
Equipped with PIN detector for high accuracy
Optimum detection sensitivity

Application Areas:

Jewellery, dental alloys and precious metals
Platinum and silver
Rhodium
Yellow and white gold
Multi layer coatings
Alloys and coatings

Specification

Usage/Application	Testing, Tunch, Hallmarking , Jewellery Retail , Hallmarking and Assay Offices
Material	Aluminium
Application	Laboratory Use
Analysis Elements	GUsed, Copper, Silver, Platinum
Operation Mode	Automatic
Automation Grade	Automatic
Power Type	Electric
Accuracy	0.01
Speed	30 sec per sample
Detector	SI Pin Detector
Features	Analysis of gold, silver and other metals
Aperture Collimator	4x changeable .2 , .6 , 1 , 2 mm
Dimension	403 x 588 x 365 mm
Computer	HP
Count Rate	More than 100000
Surface Finish	Metallic
Design	Benchtop
Detection Limit	Al to U
Display	LCD
Display Screen	PC
Element Range	Aluminum to Uranium including Iridium, Ruthenium , Osmium, Rhenium, Tin and Lead
Measuring Direction	Bottom Up
Radiation Protection	AERB Approved
Rated Power	AC 115 V or AC 230 V
Sample Positioning	Manually or Automatically
Sample Stage	Fixed sample support
Test Chamber Dimension	310 x 320 mm
Tube	Micro focus tube with tungsten target and beryllium window
X Ray Tube	Micro focus tube with tungsten target and beryllium window
Brand	FISCHER
Condition	New
Power Supply	AC 115 V or AC 230 V
Protection Class	IP40
