Goldscope Sd 550 Dpp+
Product Details:
- Weight 45 Kilograms (kg)
- Power Supply AC 230 V 50 / 60 Hz
- Test Range Aluminium to Uranium including elements such as Gold, Silver, Platinum, Copper, Nickel, Zinc, Iridium, Ruthenium, Osmium and other PGM group elements
- Dimension (L*W*H) 403 x 588 x 365 Millimeter (mm)
- Color Grey and Black
- Material Metal
- Usage Gold and Silver Testing
- Click to View more
X
Goldscope Sd 550 Dpp+ Price And Quantity
- 1 , , Piece
Goldscope Sd 550 Dpp+ Product Specifications
- 45 Kilograms (kg)
- Aluminium to Uranium including elements such as Gold, Silver, Platinum, Copper, Nickel, Zinc, Iridium, Ruthenium, Osmium and other PGM group elements
- 230 Volt (v)
- 45 Kilograms (kg)
- Gold and Silver Testing
- 403 x 588 x 365 Millimeter (mm)
- Grey and Black
- Metal
- AC 230 V 50 / 60 Hz
- Gold and Silver Testing
Goldscope Sd 550 Dpp+ Trade Information
- 1 , , Piece Per Day
- 3-4 Week
- All India
Product Description
Goldscope Sd 550 Dpp+
XRF Gold Testing Machine GOLDSCOPE SD 550 with new detector and DPP+ is a high-Performance X-Ray Fluorescence Measuring Instruments for fast and non-destructive Gold Analysis, Gold Manufacturing, Gold refinery, Hallmarking, Material Analysis and Coating Thickness Measurement.
Application
- Gold Purity Testing
- Gold Coating Thickness
- Gold analysis in manufacturing, refinery and Hallmarking centres.
- Measurement of functional coatings, starting from a few nanometers, in the electronics and semiconductor industries
- Trace analysis for consumer protection, e.g. lead content in toys
- Analysis of alloys with highest requirements of accuracy in the jewellery and watch industries and in metal refineries
- Research in universities and in the industries
Intended use Energy dispersive x-ray fluorescence measuring instrument (EDXRF) to determine thin coatings, Gold Testing, Gold analysis, trace elements and alloys
Element range Aluminium (13) to Uranium (92) up to 24 elements simultaneously

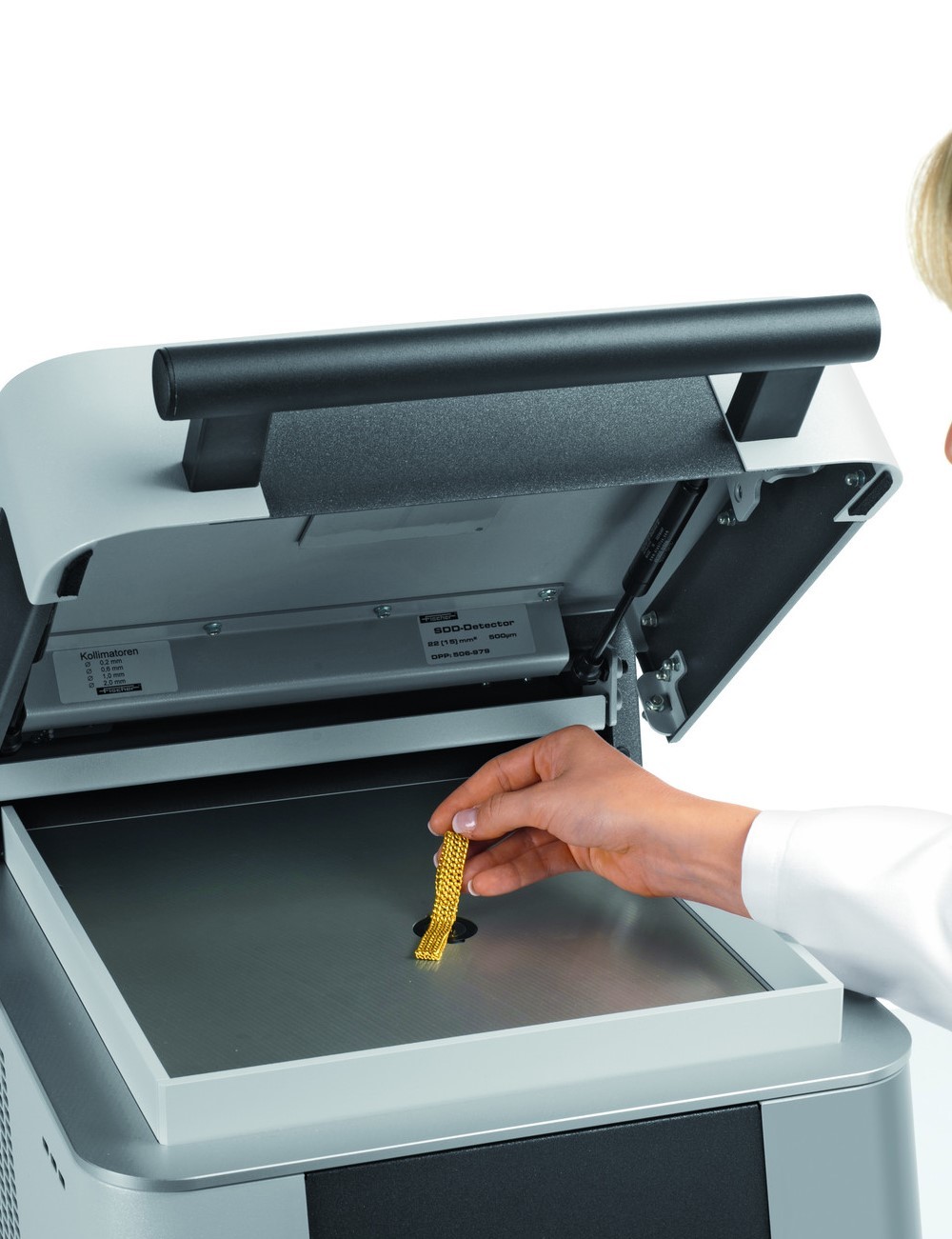

Design Benchtop unit with upwards opening hood
Measuring direction Bottom-up
Specification
| Usage/Application | Testing, Tunch, Hallmarking , Jewellery Retail , Hallmarking and Assay Offices |
| Material | Aluminium |
| Application | Laboratory Use |
| Analysis Elements | GUsed, Copper, Silver, Platinum |
| Operation Mode | Automatic |
| Automation Grade | Automatic |
| Power Type | Electric |
| Accuracy | 0.01 |
| Speed | 30 sec per sample |
| Detector | SI Pin Detector |
| Features | Analysis of gold, silver and other metals |
| Aperture Collimator | 4x changeable .2 , .6 , 1 , 2 mm |
| Dimension | 403 x 588 x 365 mm |
| Computer | HP |
| Count Rate | More than 100000 |
| Surface Finish | Metallic |
| Design | Benchtop |
| Detection Limit | Al to U |
| Display | LCD |
| Display Screen | PC |
| Element Range | Aluminum to Uranium including Iridium, Ruthenium , Osmium, Rhenium, Tin and Lead |
| Measuring Direction | Bottom Up |
| Radiation Protection | AERB Approved |
| Rated Power | AC 115 V or AC 230 V |
| Sample Positioning | Manually or Automatically |
| Sample Stage | Fixed sample support |
| Test Chamber Dimension | 310 x 320 mm |
| Tube | Micro focus tube with tungsten target and beryllium window |
| X Ray Tube | Micro focus tube with tungsten target and beryllium window |
| Brand | FISCHER |
| Condition | New |
| Power Supply | AC 115 V or AC 230 V |
| Protection Class | IP40 |
