Fischerscope X-RAY XDLM PCB 210

Product Description

Typical fields of application:

A high count rate is achieved by using a micro-focus X-ray source and a proportional counter tube, which allows for precise measurements. Outstanding accuracy and long-term stability are characteristics of all FISCHERSCOPE X-RAY systems. The necessity of recalibration is dramatically reduced, saving time and effort. The fundamental parameter method by FISCHER allows for the analysis of solid and liquid specimens as well as coating systems without calibration. For measurements on large printed circuit boards and multi-panels, the XDLM-PCB 200 can be equipped with a sample stage extension to enlarge the usable sample placement area. The XDLM-PCB 220 features electrically changeable apertures and primary filters to create ideal excitation conditions for every measurement. This makes the instrument extremely versatile.

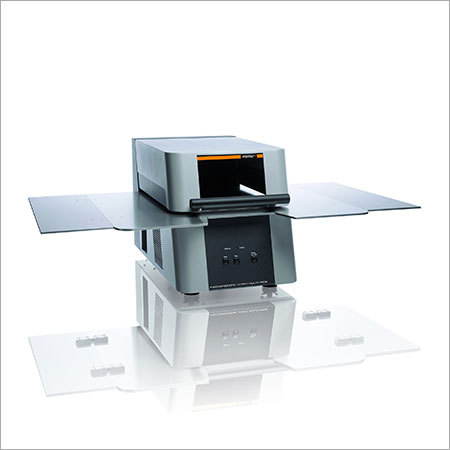

The FISCHERSCOPE X-RAY XDLM-PCB Series is designed as a user-friendly bench-top instrument. The housing features a slot in the side allowing for the measurement of large pc-boards. Both instruments feature an easy sample positioning:

XDLM-PCB 200: The PCB will be roughly positioned with the help of the integrated laser pointer. Then the sample support will be pushed into the instrument similar to a drawer.

 XDLM-PCB 210 and 220: The instrument is equipped with a high-precision, programmable XY-stage with a pop out function.

A laser pointer serves as a positioning aid and supports the quick alignment of the sample to be measured. A high-resolution color video camera simplifies the precise determination of the measurement spot.

The entire operation and evaluation of measurements as well as the clear presentation of measurement data is performed on a PC, using the powerful and user-friendly WinFTM software.

The X-RAY XDLM-PCB Series fulfills DIN ISO 3497 and ASTM B 568.
