Precious Material Analysis XAN 315

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Precious Material Analysis XAN 315 Price And Quantity

Minimum Order Quantity 1 Piece

Precious Material Analysis XAN 315 Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 3-4 Week

Product Description

The FISCHERSCOPE X-RAY XAN 315 is the cost-effective entry-level X-ray fluorescence measuring instrument for non-destructive analysis of Gold, jewellery, coins and precious metals.

Applications	Analysis of Jewellery, precious metals and dental alloys Yellow and white gold Platinum and silver Rhodium Alloys and coatings Multi layer coatings
General Specification	Intended use Energy dispersive X-ray measuring instrument (EDXRF) to analyse precious metals and their alloys in composition and coating thickness. Typically used in Retail Jewellery shops. Element range Chlorine (17) to Uranium (92) up to 24 elements simultaneously Repeatability 1 for gold, Measurement time 60 sec Design Bench top unit with towards the front opening hood Measuring direction Bottom up
X-Ray Source	X-ray tube Tungsten tube, thermally stabilized High voltage Three steps: 30 kV, 40 kV, 50 kV Aperture (Collimator) 1 mm (39 mils) Measurement spot Aperture diameter plus 200 m (8 mils), at measurement distance MD = 0 mm
Dimensions	External dimensions Width x depth x height [mm]: 404 x 455 x 367 mm, [in]: 16 x 18 x 14.5 Weight Approx. 25 kg (55 lb)

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Material Analysis Instruments' category

XRF RoHS Analysis Minimum Order Quantity : 1

Send Inquiry

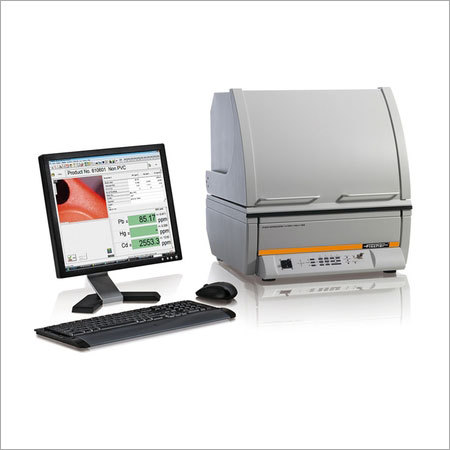

XRF Material Analysis Instrument Minimum Order Quantity : 1

Send Inquiry

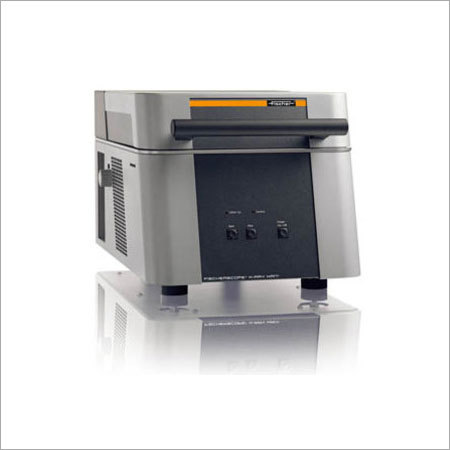

Material Analysis using XAN 250 Minimum Order Quantity : 1
