Goldscope SD 520 DPP+

Get a Price/Quote

Product Details:

Sensors Specification SDD Detctor with DPP+
Usage Gold and silver testing
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Goldscope SD 520 DPP+ Price And Quantity

Minimum Order Quantity 1 Piece

Goldscope SD 520 DPP+ Product Specifications

Sensors Specification SDD Detctor with DPP+
Usage Gold and silver testing

Goldscope SD 520 DPP+ Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 3-4 Week
Main Domestic Market All India

Product Description

Goldscope SD 520 DPP+ is a sophisticated model of X-ray Fluorescence Measuring Instrument for quick and non-destructive analysis of silver and gold alloys. With the first in class DPP+ and new detector the Fischer Goldscope SD 520 DPP+ produces the highly accurate gold purity results in a short time period. Our company is a reliable sales enterprise for highly functional model at industry leading prices. Goldscope SD 520 DPP+ is effectively being used in Hallmarking Centre, Gold Manufacturing, Gold Assaying Centres and Testing Labs.

Features of Gold Purity Analyzer:

Technical attuned for non-destructive analysis of coins, jewellery, and expensive metals
Fixed aperture and fixed filter; thus particularly suited for precious metal analysis
Comes with high-resolution silicon drift detector (SDD) and DPP+ that render it ideal for more complicated analyses with several elements
Dental alloys analysis
Measuring direction from down towards up, this permits for swift and convenient sample positioning
Analysis of gold and priceless metal in the watch and jewellery industries.

Specification

Usage/Application	Testing, Tunch, Hallmarking , Jewellery Retail , Hallmarking and Assay Offices
Material	Aluminium
Application	Laboratory Use
Analysis Elements	GUsed, Copper, Silver, Platinum
Operation Mode	Automatic
Automation Grade	Automatic
Power Type	Electric
Accuracy	0.01
Speed	30 sec per sample
Detector	SI Pin Detector
Features	Analysis of gold, silver and other metals
Aperture Collimator	4x changeable .2 , .6 , 1 , 2 mm
Dimension	403 x 588 x 365 mm
Computer	HP
Count Rate	More than 100000
Surface Finish	Metallic
Design	Benchtop
Detection Limit	Al to U
Display	LCD
Display Screen	PC
Element Range	Aluminum to Uranium including Iridium, Ruthenium , Osmium, Rhenium, Tin and Lead
Measuring Direction	Bottom Up
Radiation Protection	AERB Approved
Rated Power	AC 115 V or AC 230 V
Sample Positioning	Manually or Automatically
Sample Stage	Fixed sample support
Test Chamber Dimension	310 x 320 mm
Tube	Micro focus tube with tungsten target and beryllium window
X Ray Tube	Micro focus tube with tungsten target and beryllium window
Brand	FISCHER
Condition	New
Power Supply	AC 115 V or AC 230 V
Protection Class	IP40

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Carat Meter and Gold Testing Instruments' category

Fischer Gold Tester Minimum Order Quantity : 1 Usage : Precious Metal Analysis Application : Precious Metal Analysis Product Type : Gold Testing Machine Machine Weight : 45 Kilograms (kg)

Send Inquiry

Gold Testing Machine Minimum Order Quantity : 1 Usage : Precious Metal Analysis Application : Gold, Silver, Platinum and other metal testing Product Type : Gold Testing Machine Machine Weight : 45 Kilograms (kg)

Send Inquiry

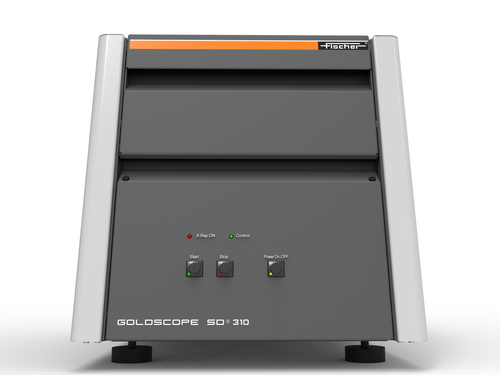

Goldscope SD 310 Minimum Order Quantity : 1 Usage : Gold Purity Testing Condition : New Sensors Specification : PC Counter Focus : 0.6 mm
